DT Products Radius Arms
These things are BEEFY! These are long radius arms (42") that require the stock mounts be removed. I am finally getting rid of the Skyjacker 4.5" lift. The reason why I explored this option in the first place is because I haven't been able to keep an alignment under the front end for more than a couple weeks, even after replacing the ball joints and TRE's in my front end.
The brackets use (4) 1/2" bolts in the side of the frame, (3) 3/8" bolts in the underside of the frame rail, and (2) 1/2" bolts into the trans crossmember. A 5/8" bolt is used on the frame end and upper control arm mount, and the stock cam bolt is used on the lower control arm mount. Caster can be adjusted using the cam bolts or the barrel adjusters.
David Turbyfill has done some articulation tests and so far lifted the front wheel 27" off the ground before the coil bound up and the rear ran out of shock travel. They should articulate very well.
Quality is just what you'd expect from DT, excellent. Look for David to put a whole system together in the next few months, including arms, track bar, coils and shocks. I am told it will be competitively priced with the upper end Skyjacker kits. Cross over steering will also be an option at some point.
I'll post more pictures when I get them mounted up (this weekend, if it doesn't rain).
[Edited to fix images]
The brackets use (4) 1/2" bolts in the side of the frame, (3) 3/8" bolts in the underside of the frame rail, and (2) 1/2" bolts into the trans crossmember. A 5/8" bolt is used on the frame end and upper control arm mount, and the stock cam bolt is used on the lower control arm mount. Caster can be adjusted using the cam bolts or the barrel adjusters.
David Turbyfill has done some articulation tests and so far lifted the front wheel 27" off the ground before the coil bound up and the rear ran out of shock travel. They should articulate very well.
Quality is just what you'd expect from DT, excellent. Look for David to put a whole system together in the next few months, including arms, track bar, coils and shocks. I am told it will be competitively priced with the upper end Skyjacker kits. Cross over steering will also be an option at some point.
I'll post more pictures when I get them mounted up (this weekend, if it doesn't rain).
[Edited to fix images]
02-17-2005, 10:40 PM
#5
Registered User
Thread Starter
Join Date: May 2003
Location: The 951-Flatbill center of the universe
Posts: 1,515
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by BigBlue
The welds don't look to great on those but other than that, they look awesome. Let me know how it goes. I'm getting tired of fixing (insert word) on my truck. I paid to much money for this.
The welds don't look to great on those but other than that, they look awesome. Let me know how it goes. I'm getting tired of fixing (insert word) on my truck. I paid to much money for this.
Well, they're certainly not TIG'ed, but thet actually look pretty decent. Penetration is good and the bead aspect is pretty decent for the most part. Little flat in 1 or two small spots. My dad burned rod for 25 years, and he says they're fine..
03-28-2005, 02:05 PM
#7
Registered User
Thread Starter
Join Date: May 2003
Location: The 951-Flatbill center of the universe
Posts: 1,515
Likes: 0
Received 0 Likes
on
0 Posts
Bumpin' this back up.....front end is 98% complete now. Just need to permanently mount the reservoirs...

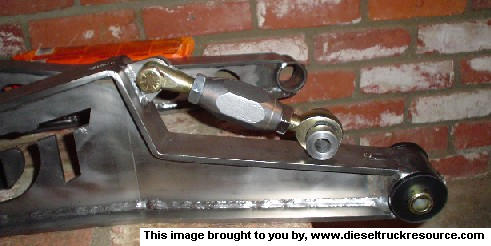

DT Radius Arms

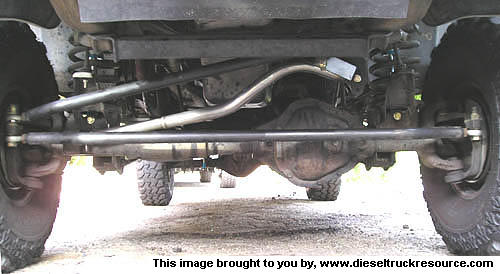

Thuren track bar and cross over steering....
Rear shocks mounted.....

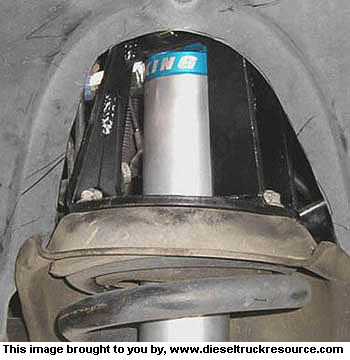

King 2.5" shocks/Thuren towers
Still working on getting the rear springs dialed in. With the big fat add-a-leaf, they're way too stiff. New shocks helped, but they're valved as light as I can go and it's not quite enough.
So far, the ride quality is drastically improved and the front end feels more solid than when it was new. First time in 3 years I can let go of the steering wheel at 75 MPH and it tracks straight. No bump steer, wobble, shimmy, nothing. I hit a dip on my street at 50 MPH that used to launch the truck at 30....soaked it right up. Couple more weeks and the torture testing begins....
DT Radius Arms
Thuren track bar and cross over steering....
Rear shocks mounted.....
King 2.5" shocks/Thuren towers
Still working on getting the rear springs dialed in. With the big fat add-a-leaf, they're way too stiff. New shocks helped, but they're valved as light as I can go and it's not quite enough.
So far, the ride quality is drastically improved and the front end feels more solid than when it was new. First time in 3 years I can let go of the steering wheel at 75 MPH and it tracks straight. No bump steer, wobble, shimmy, nothing. I hit a dip on my street at 50 MPH that used to launch the truck at 30....soaked it right up. Couple more weeks and the torture testing begins....
