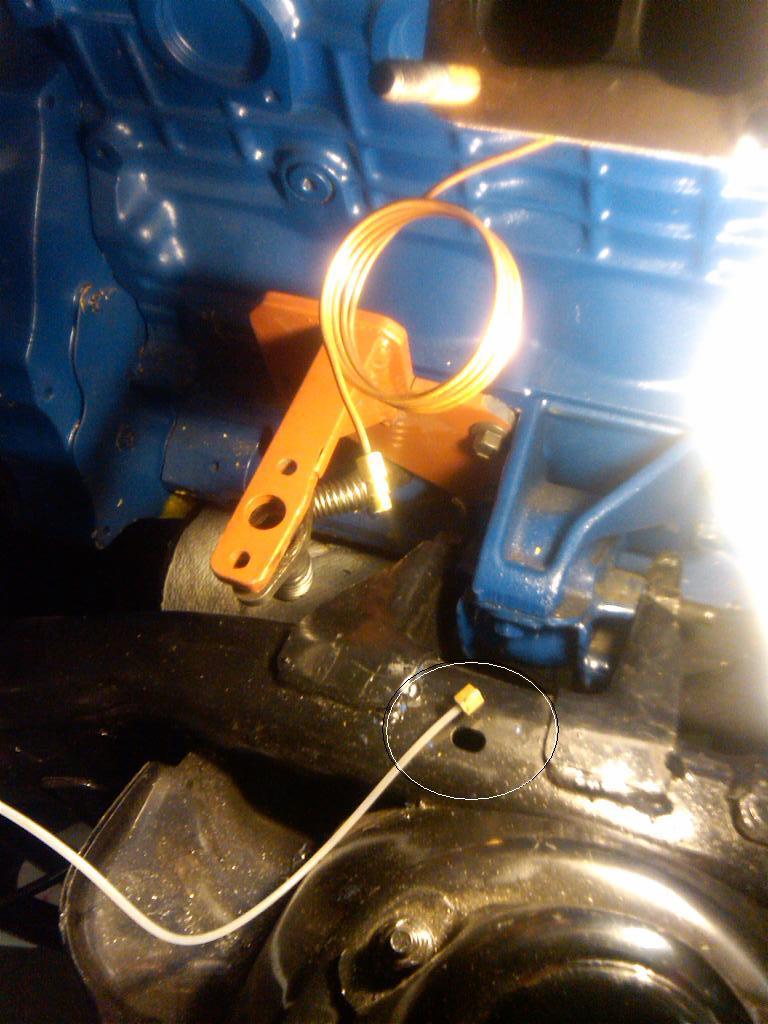

Got the engine in tonight,,,, but,,,,
#17
Chapter President
THats odd.. I don't know how you would mount the engine any other way. Can the engine mounts swap sides? Move the engine back about 2" by the looks of it and might raise it enough to clear the frame..????
#18
The Guru
Join Date: Jan 2004
Location: Airdrie Canada
Posts: 6,589
Likes: 0
Received 0 Likes
on
0 Posts
I have two suggestions. One redesign the twins to fit in your truck or redesign the motor mounts. You might be able to rig up an adapter plate so you can raise the engine abit. I would take out the motor mount, hang the engine on a engine hoist. You might on need 1/4-1/2 of engine lift. On the 12v and 24v engines, there are 6X12mm bungs threaded into the block, just for motor mounts. You will have other issues to address, like driveline alignment, transmission housing interference, exhaust system, and so on, if you move the engine. Worst case run the S475 as a single.
#19
Registered User
Join Date: Aug 2005
Location: Airdrie, Alberta
Posts: 7,780
Likes: 0
Received 0 Likes
on
0 Posts
Hopefully I'm not stepping on any toes here, Kev told me last night that this setup was in a Ford before, with different engine mounts. So between the mounts being possibly higher, and the frames possibly wider (obviously needs to be atleast one of those options) is where the interference is coming from. We've discussed adding a spacer between the drain bracket and the CHRA to lift the turbo to the neccesary elevation, which will require hot pipe and cold pipe shortening. Which is a shame, after its all been coated.
#20
Registered User
Join Date: Jun 2006
Location: Airdrie, AB
Posts: 954
Likes: 0
Received 0 Likes
on
0 Posts
EDIT: Depending on the answer to the above questions, clearancing the frame still looks like the way to go to me. From this vantage point anyway.
#21
Registered User
Join Date: May 2007
Location: Fort Chipewyan, Alberta
Posts: 247
Likes: 0
Received 0 Likes
on
0 Posts
We would need an inch divot. Too much I think as it may extend to the reinforced, double lap part. I don't think the engine side of the mount is an issue but never really looked that hard at it. I think a higher turbo mount is the best option imho.
And as far as frame differences go, I've heard the fords frame rails are straight from front to back and Dodges curve up and down for the engine/body/box so that is maybe why we're tight too.
And as far as frame differences go, I've heard the fords frame rails are straight from front to back and Dodges curve up and down for the engine/body/box so that is maybe why we're tight too.
#22
Registered User
Thread Starter
Join Date: Aug 2006
Location: Fort McMurray, Alberta
Posts: 5,426
Likes: 0
Received 0 Likes
on
0 Posts
Well I pulled the bracket off today,, i think I am going to get a new mount made,, fix up the issue of being a little bit farther from the block too... the hot pipe will be an easy fix, just cut out the ammount I raise it up, it is a straight up and down peice.. the cold pipe, well untill I get that stuff done I wont be able to see what that will need...
#23
Registered User
Join Date: Jun 2006
Location: Airdrie, AB
Posts: 954
Likes: 0
Received 0 Likes
on
0 Posts
For an inch I would cut the frame without thinking twice. When you see that frame compared to the frame we just stuffed a cummins into you will see the overkill. And I have no hesitations about cutting that frame.
It is just thin sheet metal that is bent for strength on the stock mounts, even if you have to cut into the mounts, it won't take much to beef them back up to as strong or stronger then they are stock.
I wish I was closer, looks like about an hours job, with the plasma torch and welder to fix right up.
It is just thin sheet metal that is bent for strength on the stock mounts, even if you have to cut into the mounts, it won't take much to beef them back up to as strong or stronger then they are stock.
I wish I was closer, looks like about an hours job, with the plasma torch and welder to fix right up.
#25
Registered User
Thread Starter
Join Date: Aug 2006
Location: Fort McMurray, Alberta
Posts: 5,426
Likes: 0
Received 0 Likes
on
0 Posts
An inch should give lots of clearance. I brought the bracket in yesterday to a machine shop to get it rewelded to work.. I think that I will do everything else myself and have my neighbour finish the welds after I tack them
#27
Registered User
Thread Starter
Join Date: Aug 2006
Location: Fort McMurray, Alberta
Posts: 5,426
Likes: 0
Received 0 Likes
on
0 Posts
hopefully the machine shop gives me a call today to pickup the bracket. Mostly finished wiring up the engine last night, one sensor that I am not even sure what it does let alone what plug goes on it.. figure that out this morning.
Tonight the wife and I are going to tint the back window. If the bracket is done I might get that on too..
Tonight the wife and I are going to tint the back window. If the bracket is done I might get that on too..
