Proper place to drill for pyrometer
#1
Registered User
Thread Starter
Join Date: Feb 2006
Location: Rolla, MO and Blytheville, AR
Posts: 411
Likes: 0
Received 0 Likes
on
0 Posts
Proper place to drill for pyrometer
Where is the proper place to drill and tap my exhaust manifold for a pyrometer? I know where to drill on the 2nd gen's but I have seen a lot of 3rd gen trucks with it different locations and wondering where the right location is.
#2
Registered User
Join Date: Mar 2007
Location: Bremerton, WA
Posts: 357
Likes: 0
Received 0 Likes
on
0 Posts
#5
Registered User
Thread Starter
Join Date: Feb 2006
Location: Rolla, MO and Blytheville, AR
Posts: 411
Likes: 0
Received 0 Likes
on
0 Posts
Thanks alot man. That is an excellent site. Very helpful and informative. Looks like I have that "rare" ramped exhaust manifold. I wonder what the difference is?
#6
Registered User
Join Date: Feb 2007
Location: sw missouri
Posts: 187
Likes: 0
Received 0 Likes
on
0 Posts
I just installed mine the other day. My truck has a ramped manifold. I drilled a little lower that what it showed on dieselmanor's web page anyone think this would hurt anything? Taped half the exhauset tip, greased the bits and let the truck run. worked like a charm.
#7
Registered User
Thread Starter
Join Date: Feb 2006
Location: Rolla, MO and Blytheville, AR
Posts: 411
Likes: 0
Received 0 Likes
on
0 Posts
I went ahead and drilled mine right where dieselmanor said. I already had my manifold off my truck when I was installing my Silver Bullet last nite so it was a breeze drilling and tapping it.
Trending Topics
#9
DTR 1st Sergeant

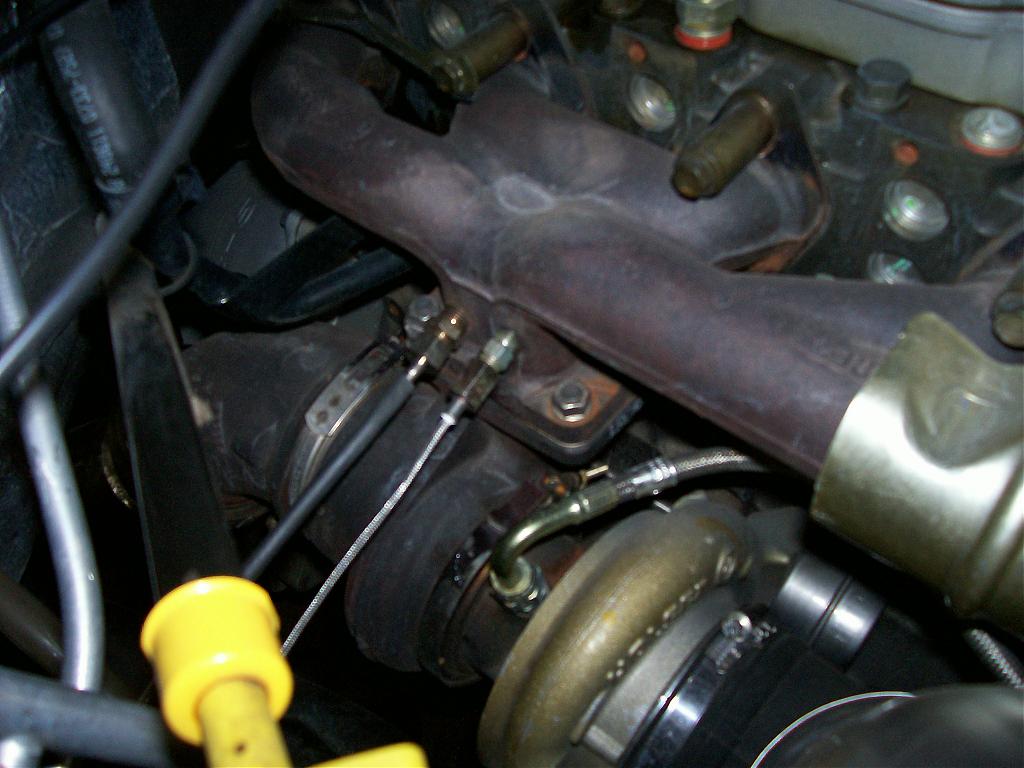

It is most accurate the way cdennyb has in his picture above. I have seen a difference of up to 150* lower when just tapping at the top like the first picture shown. you do want to know the highest temps in the manifold for reference...
#11
Registered User
That seems like a huge difference for a couple of inches and nothing like a turbo inbetween them. I could see a small difference, but I would expect it to be cooler lower, especially looking at photos of manifolds that have been heat soaked, they show the most color at the cylinder.
#13
DTR 1st Sergeant
That seems like a huge difference for a couple of inches and nothing like a turbo inbetween them. I could see a small difference, but I would expect it to be cooler lower, especially looking at photos of manifolds that have been heat soaked, they show the most color at the cylinder.

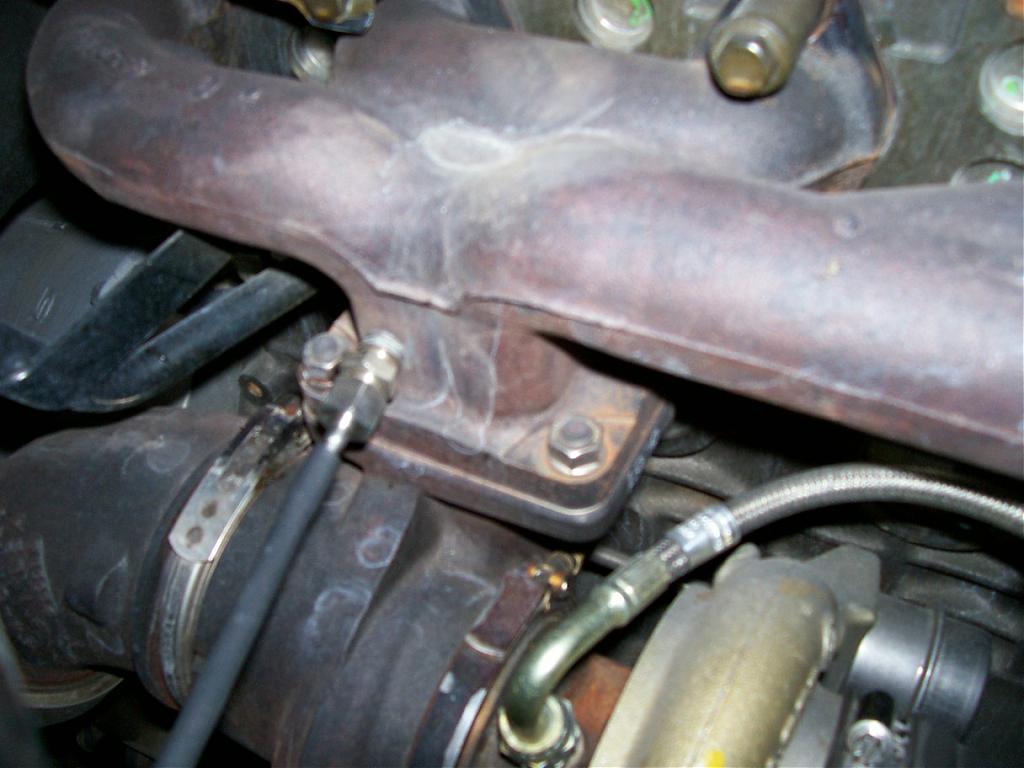

No, I am very confident in what I posted because When I installed my TST, the pyro was put on top like the first pic in the thread. The first thing i told my mechanic that did it that way, was that there was at least a 100* difference between the TST pyro and my Autometer that was installed by the turbo. Well, I got a chance to correct that and put both down low next to each other just like the second set of pics in this thread... turns out the TST pyro reads about 20* higher than the autometer. This is with same before/after settings. The autometer is on cyls 4-6; the TST cyls 1-3.
#14
Registered User
Did you ever see that video of the 1000 hp Ford turbo'd engine getting redhot, literally, right at the collector?
No, I am very confident in what I posted because When I installed my TST, the pyro was put on top like the first pic in the thread. The first thing i told my mechanic that did it that way, was that there was at least a 100* difference between the TST pyro and my Autometer that was installed my the turbo. Well, I got a chance to correct that and put both down low next to each other just like the second set of pics in this thread... turns out the TST pyro reads about 20* higher than the autometer. This is with same before/after settings. The autometer is on cyls 4-6; the TST cyls 1-3.
No, I am very confident in what I posted because When I installed my TST, the pyro was put on top like the first pic in the thread. The first thing i told my mechanic that did it that way, was that there was at least a 100* difference between the TST pyro and my Autometer that was installed my the turbo. Well, I got a chance to correct that and put both down low next to each other just like the second set of pics in this thread... turns out the TST pyro reads about 20* higher than the autometer. This is with same before/after settings. The autometer is on cyls 4-6; the TST cyls 1-3.
All in all I am not worried about having the probe up top, I get readings very similar, less than 100* difference that talking with other folks with the same/similar mods.. If I ever get into big power I may move it, but for now it is still an accurate reading and much better than post turbo.
