DIY H2O/Meth
#1
Registered User
Thread Starter
DIY H2O/Meth
These are some pics of the water/meth system I designed; sorry for the multiple posts! (I only know how to attach one pic/post ):

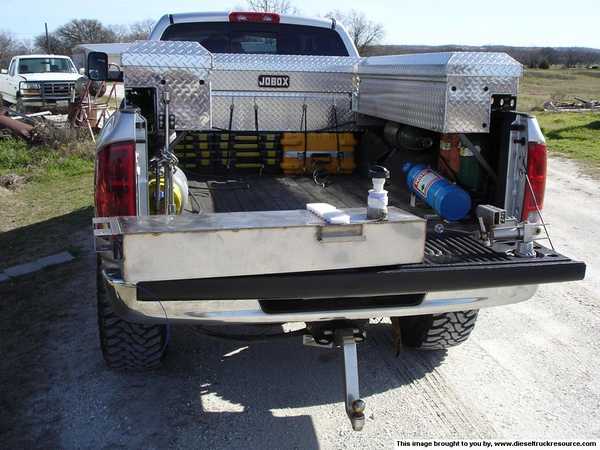

This is the 10 gallon tank that mounts where the muffler used to be. It has a SS mesh filter, level sensor, tank vent, and filler cap that says "Diesel Only" ! (It was leftover after I installed a locking one for the #2 tank). It mounts to the frame crossmember with rubber isolaters, and will light the "refill" LED when there's about a quart left.
This is the 10 gallon tank that mounts where the muffler used to be. It has a SS mesh filter, level sensor, tank vent, and filler cap that says "Diesel Only" ! (It was leftover after I installed a locking one for the #2 tank). It mounts to the frame crossmember with rubber isolaters, and will light the "refill" LED when there's about a quart left.
#2
Registered User
Thread Starter

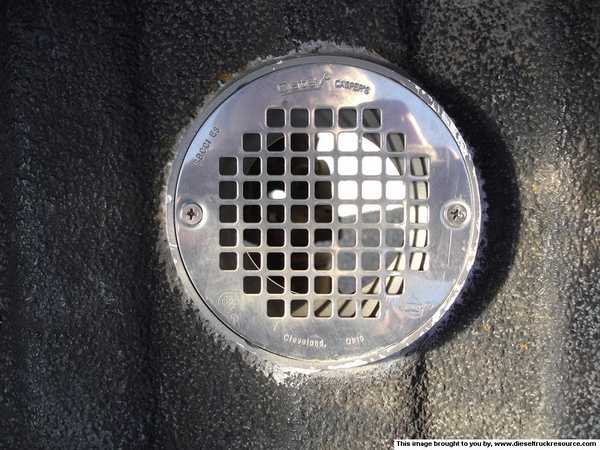

This is the stainless steel grate/cover for the refueling access hole in the bed floor:
The "Diesel Only" cap sits about half an inch below it...
The "Diesel Only" cap sits about half an inch below it...
#3
Registered User
Thread Starter
... and the multi-stage boost-activated switch logic control unit for the H2O/Meth and NO2 injection systems:
It incorporates 3 solenoids (NO2 not shown), 3 Hobbs switches, injection pressure gauge, dyno-boost gauge (not shown), custom injection manifold w/IP return/bypass, and Schrader valve Hobbs adjuster.
The NO2 fogger is on the pre-CAC and the water/meth jets are plumbed into the intake manifold bosses.
It incorporates 3 solenoids (NO2 not shown), 3 Hobbs switches, injection pressure gauge, dyno-boost gauge (not shown), custom injection manifold w/IP return/bypass, and Schrader valve Hobbs adjuster.
The NO2 fogger is on the pre-CAC and the water/meth jets are plumbed into the intake manifold bosses.
Trending Topics
#12
Banned
Join Date: Apr 2006
Location: College Station, Texas
Posts: 3,141
Likes: 0
Received 0 Likes
on
0 Posts
#14
Registered User
Thread Starter
Thanks!
Thanks -
How did you know?
All my ex's said I was very controlling, too!
The (pressure washer?) injection pump is rubber-mounted to the frame next to the SS tank where the muffler used to be... sensor is a standard reed-type magnetic non-conducting liquid-tight.
Thanks, Tyler... I should, but you know I LIVE for this stuff!
How did you know?
All my ex's said I was very controlling, too!
The (pressure washer?) injection pump is rubber-mounted to the frame next to the SS tank where the muffler used to be... sensor is a standard reed-type magnetic non-conducting liquid-tight.
Thanks, Tyler... I should, but you know I LIVE for this stuff!
