for those who have replaced thier fuseable links
I am just curious what the current state is of the trucks which were converted to maxi fuses. Any burn to the ground etc?
I was thinking of converting the puller first and then maybe the dually. I had the fuseable link to the pump blow once on the puller (my fault) and once on the dually (it just blew for no reason except a bad replacement earlier in life).
I have found a fuse box from a Ford Crown Victoria which has 4 bosch relay slots, 10 maxifuses, 6 standard bus blade fuses, and 1 blade type circuit breaker. It has a positive feed stud which has a sliding cover. The whole box is fully enclosed, but it comes apart. I was also thinking of using the megafuse holder from a 90's chevy tahoe/suburban which is also fully enclosed. I thought this way I have a correct place to wire add on accessories in the future and it would clean up the horrendous wiring job from the factory while making the truck easier to service.
I was thinking of converting the puller first and then maybe the dually. I had the fuseable link to the pump blow once on the puller (my fault) and once on the dually (it just blew for no reason except a bad replacement earlier in life).
I have found a fuse box from a Ford Crown Victoria which has 4 bosch relay slots, 10 maxifuses, 6 standard bus blade fuses, and 1 blade type circuit breaker. It has a positive feed stud which has a sliding cover. The whole box is fully enclosed, but it comes apart. I was also thinking of using the megafuse holder from a 90's chevy tahoe/suburban which is also fully enclosed. I thought this way I have a correct place to wire add on accessories in the future and it would clean up the horrendous wiring job from the factory while making the truck easier to service.
#3
Registered User
I use circuit breakers.
#4
Registered User
Join Date: Feb 2010
Location: southeast pa.
Posts: 245
Likes: 0
Received 0 Likes
on
0 Posts

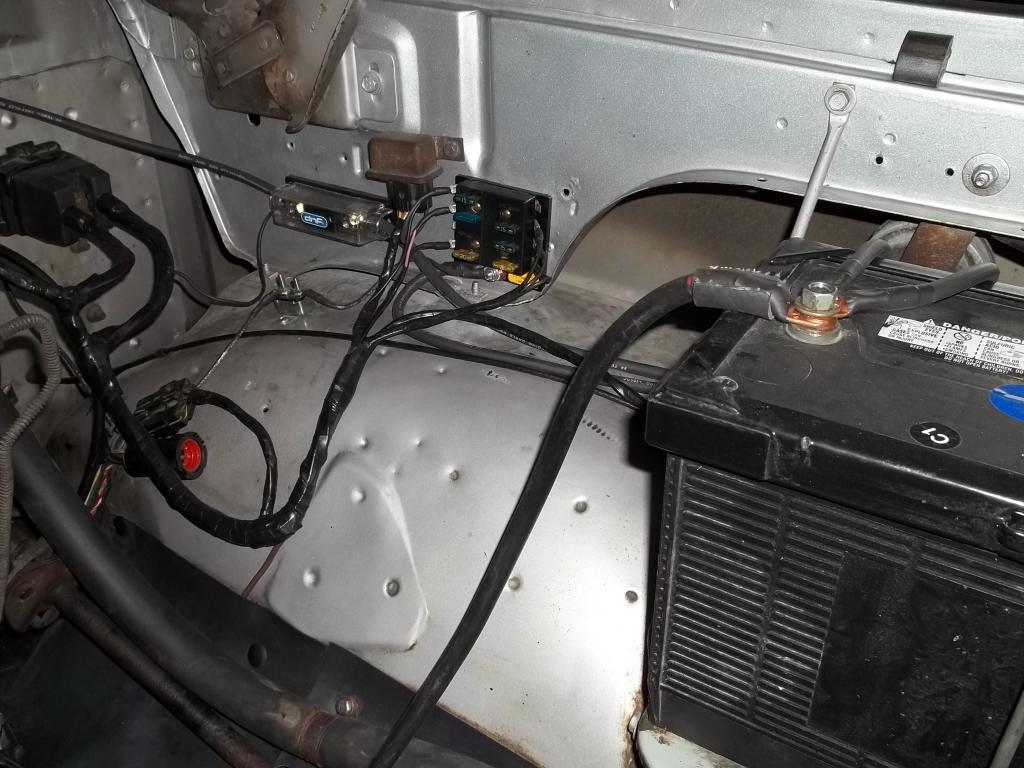

this is how I replaced my fuseable links.bussmann 8 position fuse panel,anl fuseholder block and 4 awg wire.
I installed a delco 22si alternator.(that put an end to the factory alternator and regulator).ran #4 wire to the anl fuse holder with a 150 amp fuse in line to battery. from battery,#4 wire to 8 position fuse block.
in the fuse block,15 amp fuse starter relay,15 amp fuse battery hazard,20 amp fuse ignition draw off,15 amp fuse ignition switch,20 amp fuse head light switch.everything but the starter relay goes to the original under dash fuse box thru the original cowl plug.the truck hasn't burnt up yet.it's been about 6 months.don't know much about wiring,but this seems to work for me!
I installed a delco 22si alternator.(that put an end to the factory alternator and regulator).ran #4 wire to the anl fuse holder with a 150 amp fuse in line to battery. from battery,#4 wire to 8 position fuse block.
in the fuse block,15 amp fuse starter relay,15 amp fuse battery hazard,20 amp fuse ignition draw off,15 amp fuse ignition switch,20 amp fuse head light switch.everything but the starter relay goes to the original under dash fuse box thru the original cowl plug.the truck hasn't burnt up yet.it's been about 6 months.don't know much about wiring,but this seems to work for me!
#6
Registered User
Join Date: Aug 2011
Location: epping, nh
Posts: 33
Likes: 0
Received 0 Likes
on
0 Posts
I need to do this. But I was having trouble with what size fuse to use per wire. Anyone know the color fusible link takes what size fuse?
Sent from my iPhone using Tapatalk
Sent from my iPhone using Tapatalk
Trending Topics
#8
Registered User
Join Date: Jun 2010
Location: Oklahoma
Posts: 13
Likes: 0
Received 0 Likes
on
0 Posts
Planning to do something similar to my truck. The fusible links seem to be a poor design. Anyone know how they are repaired at the dealership? Do they cut out the old fuse links and solder in new ones?
#9
Registered User
I did some of mine several years ago and so far so good.
But I am a little concerned since a fusible link and a fuse are designed to function differently, but like I said - so far so good...
But I am a little concerned since a fusible link and a fuse are designed to function differently, but like I said - so far so good...
#10
Registered User
#11
Registered User
#12
Registered User
Thread Starter
Join Date: Aug 2005
Location: Nebraska
Posts: 319
Likes: 0
Received 0 Likes
on
0 Posts
The pump shutoff solenoid is also wired through a fuseable link. If the wire falls off with the key on POOF! GM runs an ignition fuse in the firewall mounted fuse box on trucks of the same vintage. Again, poor design by dodge.
There was also a mention of burn times of fuseable links vs. fuses. One should note that maxi fuses and megafuses have pretty much replaced fuseable links on new vehicles. The larger fuses have a slower burn out, so they can handle a surge of current more effectively. A 20A minifuse and a 20A maxifuse are not entirely the same.
#13
Registered User
Back when I worked in a GM dealership we cut the offending link out and replaced it. Those vehicles didn't really have issues with fuseable links though. The trouble with dodge is the goofy rubber splice. It seems like the links always burn back into it. It was a stupid design, which makes it a headache to service correctly. I wouldn't doubt if some dodge dealers replaced a whole section of the harness to fix it right.
The pump shutoff solenoid is also wired through a fuseable link. If the wire falls off with the key on POOF! GM runs an ignition fuse in the firewall mounted fuse box on trucks of the same vintage. Again, poor design by dodge.
There was also a mention of burn times of fuseable links vs. fuses. One should note that maxi fuses and megafuses have pretty much replaced fuseable links on new vehicles. The larger fuses have a slower burn out, so they can handle a surge of current more effectively. A 20A minifuse and a 20A maxifuse are not entirely the same.
The pump shutoff solenoid is also wired through a fuseable link. If the wire falls off with the key on POOF! GM runs an ignition fuse in the firewall mounted fuse box on trucks of the same vintage. Again, poor design by dodge.
There was also a mention of burn times of fuseable links vs. fuses. One should note that maxi fuses and megafuses have pretty much replaced fuseable links on new vehicles. The larger fuses have a slower burn out, so they can handle a surge of current more effectively. A 20A minifuse and a 20A maxifuse are not entirely the same.
That is good to know, thanks stillsmokin.
#14
Administrator
Back when I worked in a GM dealership we cut the offending link out and replaced it. Those vehicles didn't really have issues with fuseable links though. The trouble with dodge is the goofy rubber splice. It seems like the links always burn back into it. It was a stupid design, which makes it a headache to service correctly. I wouldn't doubt if some dodge dealers replaced a whole section of the harness to fix it right.
The pump shutoff solenoid is also wired through a fuseable link. If the wire falls off with the key on POOF! GM runs an ignition fuse in the firewall mounted fuse box on trucks of the same vintage. Again, poor design by dodge.
There was also a mention of burn times of fuseable links vs. fuses. One should note that maxi fuses and megafuses have pretty much replaced fuseable links on new vehicles. The larger fuses have a slower burn out, so they can handle a surge of current more effectively. A 20A minifuse and a 20A maxifuse are not entirely the same.
The pump shutoff solenoid is also wired through a fuseable link. If the wire falls off with the key on POOF! GM runs an ignition fuse in the firewall mounted fuse box on trucks of the same vintage. Again, poor design by dodge.
There was also a mention of burn times of fuseable links vs. fuses. One should note that maxi fuses and megafuses have pretty much replaced fuseable links on new vehicles. The larger fuses have a slower burn out, so they can handle a surge of current more effectively. A 20A minifuse and a 20A maxifuse are not entirely the same.
Back in the era of the glass fuse you could look inside the cartridge and see the element melted and drooped to the bottom and the fuse was still working, a sign of drawing excessive current.
