Pics of your engine bay
Hey, I would like to see the different set-ups and configurations in your engine bays. If you have some photos and would like to share them, please post them.
Looking for ideas
Thanks
Looking for ideas
Thanks
09-16-2009, 12:04 AM
#6
Registered User
Join Date: Aug 2006
Location: Cresson/Stephenville Texas
Posts: 2,436
Likes: 0
Received 0 Likes
on
0 Posts
Trending Topics
09-16-2009, 06:25 AM
#13
Administrator

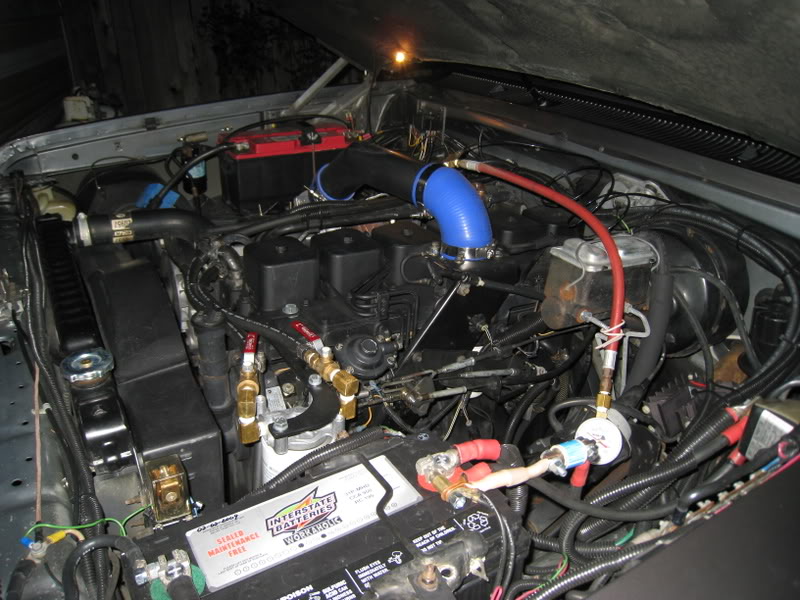

Well here is mine, as you can see from some of the differences in these pictures they were take throughout different stages.
The red hose is connected to my test gauge with a tattletale needle and with it I have found that my turbo will give me 56-PSI boost.
Between the radiator and the injection pump is a coolant filter with isolation valves.
The big 200-amp T fuse coming off the battery is protecting my 160-amp Leece Neville alternator from any catastrophic failure as it feeds my Main battery, Auxiliary #1, and Auxiliary #2 an 8-D Deep Cycle battery through a set of Sure Power Separators and contactors.
This was a bit earlier picture but there is a better view of the induction system.
Here you can see the GDS CH-03 Turbo upgrade with a 3” custom crossover and a 4” inlet, filter is a K&N.
The alternator is a Leece Neville 110-555JHO cranking out 160-amps cruising with 100-amps @ idle, right out of a Class-8 semi tractor
Here is a good head on view, the lexan panel on the passenger side firewall resides the relays for my A/C cycling switch bypass on the left while the 75-amp in the center and to the right control my blower motor. The big heat sink off the side of the master cylinder is a voltage regulator for my relayed headlights.

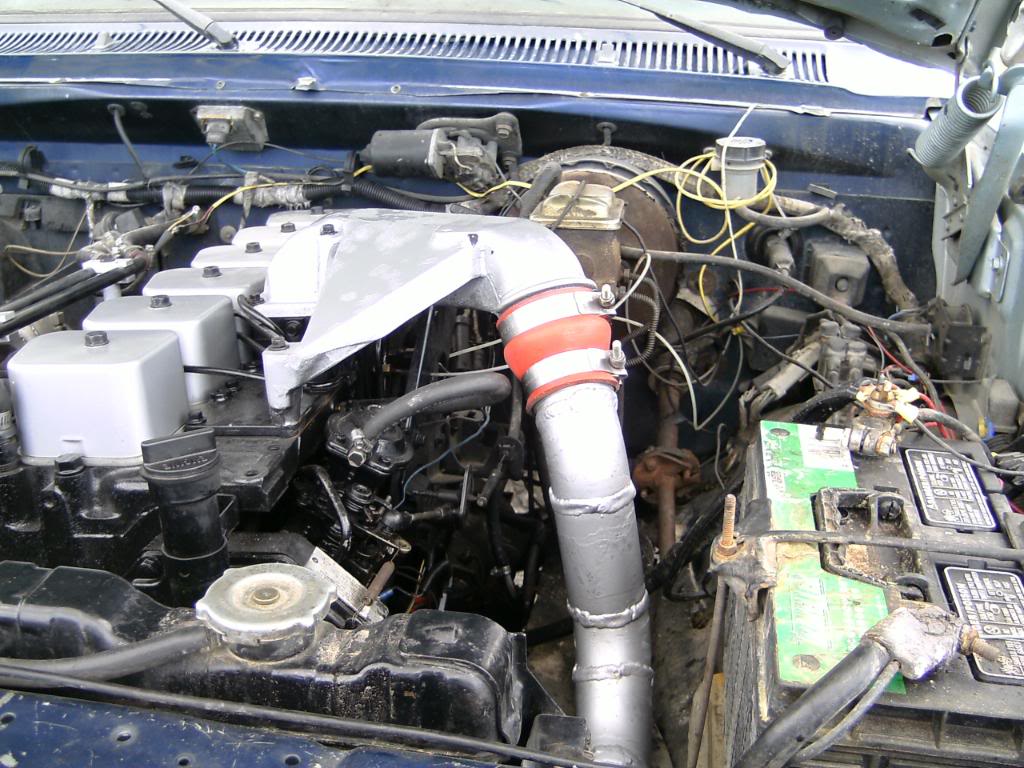

This is how I cut and welded 3” exhaust tubing to make my crossover; I still want to make it a bit lower to the valve covers.
The 2 hoses on either side of the braided oil line are actually my battery cable and the power feed from the alternator, I go for ZERO voltage drop.
Well not exactly in the engine bay but just in front of this is what helps keeping it all cool, my dual 16” electric fans for a combined 5000-CFM. They are automatically triggered by the A/C compressor or I can manually turn them on from a switch in the cab.
Here they are barely noticeable through my dirty grille
You need to be careful when walking past my truck carrying your laundry.
I am constantly getting ideas and making changes everywhere on my truck so in a few months from now it might be all different.
Jim
The red hose is connected to my test gauge with a tattletale needle and with it I have found that my turbo will give me 56-PSI boost.
Between the radiator and the injection pump is a coolant filter with isolation valves.
The big 200-amp T fuse coming off the battery is protecting my 160-amp Leece Neville alternator from any catastrophic failure as it feeds my Main battery, Auxiliary #1, and Auxiliary #2 an 8-D Deep Cycle battery through a set of Sure Power Separators and contactors.
This was a bit earlier picture but there is a better view of the induction system.
Here you can see the GDS CH-03 Turbo upgrade with a 3” custom crossover and a 4” inlet, filter is a K&N.
The alternator is a Leece Neville 110-555JHO cranking out 160-amps cruising with 100-amps @ idle, right out of a Class-8 semi tractor
Here is a good head on view, the lexan panel on the passenger side firewall resides the relays for my A/C cycling switch bypass on the left while the 75-amp in the center and to the right control my blower motor. The big heat sink off the side of the master cylinder is a voltage regulator for my relayed headlights.
This is how I cut and welded 3” exhaust tubing to make my crossover; I still want to make it a bit lower to the valve covers.
The 2 hoses on either side of the braided oil line are actually my battery cable and the power feed from the alternator, I go for ZERO voltage drop.
Well not exactly in the engine bay but just in front of this is what helps keeping it all cool, my dual 16” electric fans for a combined 5000-CFM. They are automatically triggered by the A/C compressor or I can manually turn them on from a switch in the cab.
Here they are barely noticeable through my dirty grille
You need to be careful when walking past my truck carrying your laundry.
I am constantly getting ideas and making changes everywhere on my truck so in a few months from now it might be all different.
Jim
09-16-2009, 06:33 AM
#14
Administrator
Is that your coolant filter plumbed below the turbo where my heat exchanger would be?
Your plumbing job looks good; I wish they were half as good in the houses I have to repair.
Did you leave the ends of the tubing straight where the hose connects? I soldered on 5/8” compression ferrules from my plumbing box to give the hose a ridge to hang on to.
Jim
