Headache rack pics post them!
#1
Registered User
Thread Starter
Join Date: Nov 2008
Location: gonzales tx
Posts: 162
Likes: 0
Received 0 Likes
on
0 Posts
Headache rack pics post them!
I'm lookin into building a custom headache rack for my truck and I need sum pics to get ideas. So please post them
#5
Registered User
Join Date: Jan 2007
Location: Omaha, NE
Posts: 78
Likes: 0
Received 0 Likes
on
0 Posts

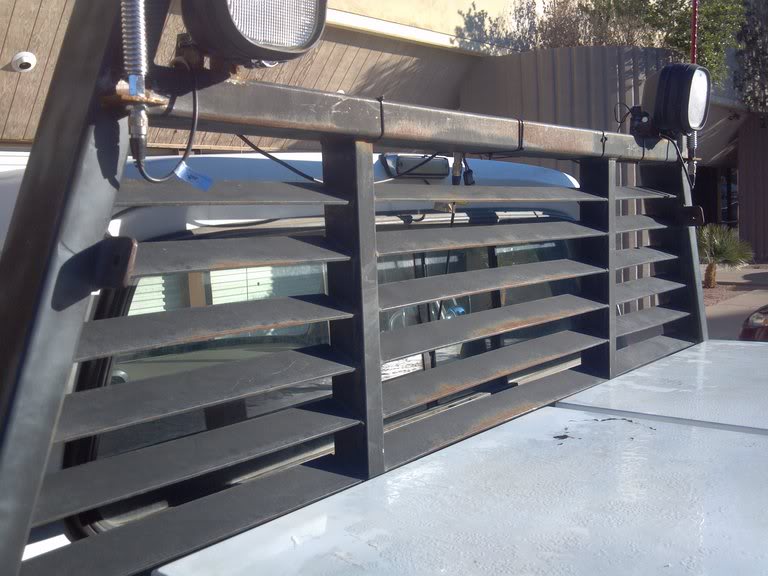

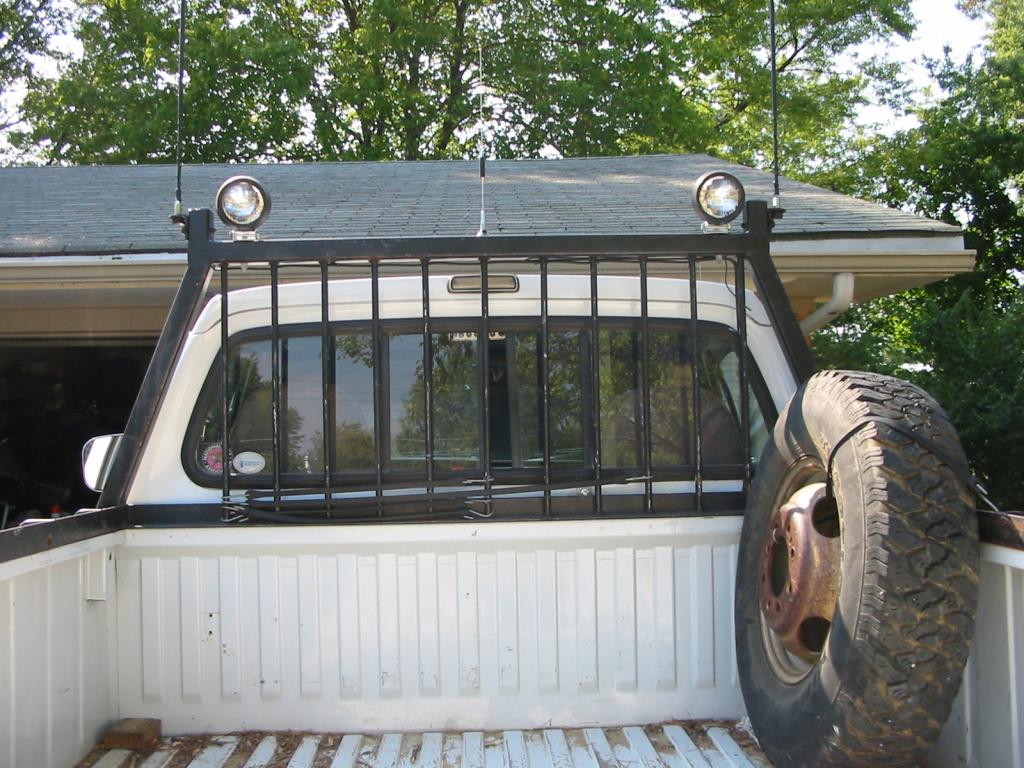

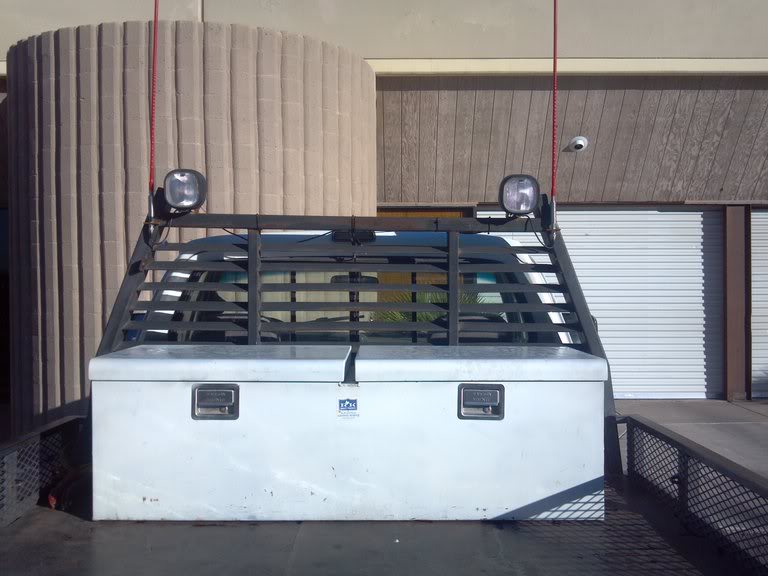

Here are a few shots of mine, I didn't build this bed though it was on the truck when i bought it, the gentleman was a welder by trade....
excuse the wiring mess have not had a chance to run though and tidy things up yet.
excuse the wiring mess have not had a chance to run though and tidy things up yet.
#6
Registered User
This what mine looks like
http://www.turnoverball.com/products.../cab-protector
http://www.turnoverball.com/products.../cab-protector
Trending Topics
#8
Registered User
Join Date: Jan 2012
Location: Central Texas
Posts: 68
Likes: 0
Received 0 Likes
on
0 Posts
Headache rack pics post them!

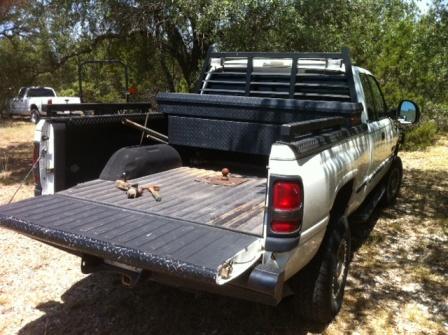

Here is a pic of my '99 2500. The rack and rails are all one piece with a saddle box (toolbox) cut out on the rails. 2" Tubing with 1-1/2" flat bar louvers. The work light cut-outs are 6"x6".

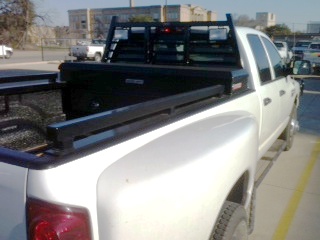

My '08 has an identical setup with the exception of the bed top cap. The '99 cap is bent diamond plate and the '08 is angle iron (much easier).
My '08 has an identical setup with the exception of the bed top cap. The '99 cap is bent diamond plate and the '08 is angle iron (much easier).
