Anyone have their front clip apart? IC?'s
#1
Anyone have their front clip apart? IC?'s
I have an idea for an intercooler swap, but I need to know how much work would be involved to make it fit. I found a very common IC in the medium duty trucks and want to know if I can make it work on my 92. So if anyon has their trucks front clip torn apart and can put a tape to it with the rough measurements i have, I would be very appreciative. As for the IC dimensions they are, 36" from inlet to outlet (they are on the top or bottom of the IC and 3") It is 14" tall, and about 2.5" deep. The main core of the cooler is 30.5" across. If it can be made to fit this would make a nice upgrade, and they should be fairly plentiful. I would measure my truck but I am out of town till the weekend and want to know if this would work.
L-36" inlet to outlet
H-14"
W-2.5"
DS79
L-36" inlet to outlet
H-14"
W-2.5"
DS79
#2
Registered User
Join Date: Nov 2007
Location: Maine
Posts: 1,816
Likes: 0
Received 0 Likes
on
0 Posts
You're going to have some issues with the bumper mount being in the way.
frame is C channel with the "C's" facing in. Outside to outside measurments are 29.25"
Mounted on the flats of those are the heavy bumper They are 34.825" across. I suppose you could notch them to make your 3" connections clear.
Usable height should not be too big of a deal a 20.25" once you notch the latch brace in the middle (just a gusset of sheet metal).
Max width before cutting into the vertical sheetmetal framing behindthe grill is about 39.5" (if you were widening the original holes for te I/C piping) and the minumum without cutting another on the INSIDE of this same bulkhead is roughly 31.25". For fun, the width across the gap for air to enter the radiator is about 28.125".

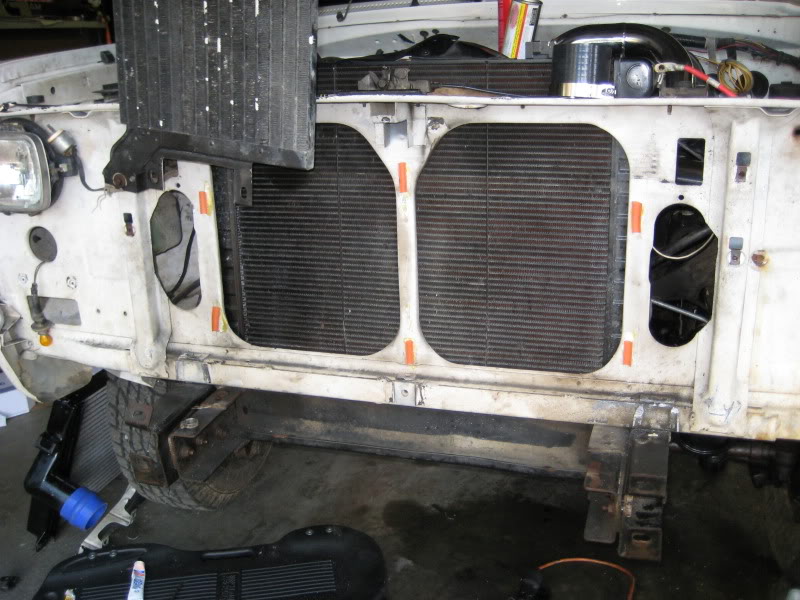

Little visual for you, A/C condensor swung out of the way.
frame is C channel with the "C's" facing in. Outside to outside measurments are 29.25"
Mounted on the flats of those are the heavy bumper They are 34.825" across. I suppose you could notch them to make your 3" connections clear.
Usable height should not be too big of a deal a 20.25" once you notch the latch brace in the middle (just a gusset of sheet metal).
Max width before cutting into the vertical sheetmetal framing behindthe grill is about 39.5" (if you were widening the original holes for te I/C piping) and the minumum without cutting another on the INSIDE of this same bulkhead is roughly 31.25". For fun, the width across the gap for air to enter the radiator is about 28.125".
Little visual for you, A/C condensor swung out of the way.
#3
Registered User
Join Date: Aug 2006
Location: Sioux Falls, South Dakota
Posts: 620
Likes: 0
Received 0 Likes
on
0 Posts
You're going to have some issues with the bumper mount being in the way.
frame is C channel with the "C's" facing in. Outside to outside measurments are 29.25"
Mounted on the flats of those are the heavy bumper They are 34.825" across. I suppose you could notch them to make your 3" connections clear.
Usable height should not be too big of a deal a 20.25" once you notch the latch brace in the middle (just a gusset of sheet metal).
Max width before cutting into the vertical sheetmetal framing behindthe grill is about 39.5" (if you were widening the original holes for te I/C piping) and the minumum without cutting another on the INSIDE of this same bulkhead is roughly 31.25". For fun, the width across the gap for air to enter the radiator is about 28.125".
Little visual for you, A/C condensor swung out of the way.
frame is C channel with the "C's" facing in. Outside to outside measurments are 29.25"
Mounted on the flats of those are the heavy bumper They are 34.825" across. I suppose you could notch them to make your 3" connections clear.
Usable height should not be too big of a deal a 20.25" once you notch the latch brace in the middle (just a gusset of sheet metal).
Max width before cutting into the vertical sheetmetal framing behindthe grill is about 39.5" (if you were widening the original holes for te I/C piping) and the minumum without cutting another on the INSIDE of this same bulkhead is roughly 31.25". For fun, the width across the gap for air to enter the radiator is about 28.125".
Little visual for you, A/C condensor swung out of the way.
#4
Registered User
Join Date: Nov 2007
Location: Maine
Posts: 1,816
Likes: 0
Received 0 Likes
on
0 Posts
For my application, I did not NEARLY need to notch it that deep though. I originally had the PS I/C right side up and I was playing with it going in deeper to see if I could change some things. I ended up mounting it upside down with the top kicked out a little (there is more room at the top with the grill attatched than the bottom). The PS I/C inlet/outlet have a slight angle, so it worked better for it to be upside down I'll write up a thread on my PS I/C install when I finish welding the new DP connections and get it back on the road. Don't count on it being done in at least the next 3 months though, the dually isn't getting touched to Febuary it seems
#5
Wow, thanks for the info. For comparison what does the PS I/C measure in at? Is it bigger or smaller then the one I am looking at? BTW the one I am eyeing is out of a Freightliner M2 buisness class truck with a C7 Cat in it. It will keep a 275hp Kitty cool whille working it hard ad flowing over 30lbs of boost, so I figured it should handle anything the little Cummins would be throwing at it. Let me know what you think.
Thanks a bunch,
DS79
Thanks a bunch,
DS79
#6
Wow, thanks for the info. For comparison what does the PS I/C measure in at? Is it bigger or smaller then the one I am looking at? BTW the one I am eyeing is out of a Freightliner M2 buisness class truck with a C7 Cat in it. It will keep a 275hp Kitty cool whille working it hard ad flowing over 30lbs of boost, so I figured it should handle anything the little Cummins would be throwing at it. Let me know what you think.
Thanks a bunch,
DS79
Thanks a bunch,
DS79
#7
Registered User
Join Date: Nov 2007
Location: Maine
Posts: 1,816
Likes: 0
Received 0 Likes
on
0 Posts

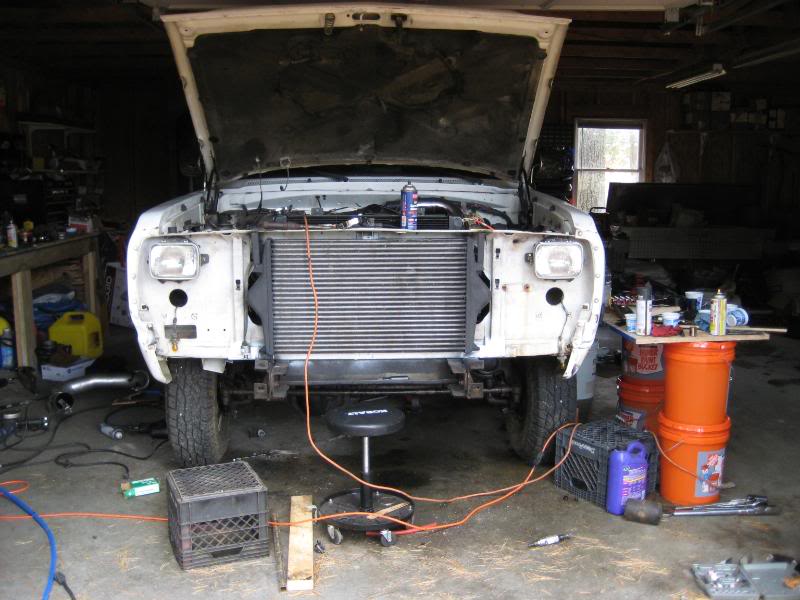

Here is a quick pic of my set up. It isn't finished, havn't done my bottom mounts with isomodes like bigragu is saying yet, but he's right. I made isomodes for my A/C condensor which is BEHIND my I/C, but I'll show those pics later, I'm on the run.
They're pretty ugly with their grill off ain't they
They're pretty ugly with their grill off ain't they
Trending Topics
#8
Registered User
Join Date: Aug 2006
Location: Sioux Falls, South Dakota
Posts: 620
Likes: 0
Received 0 Likes
on
0 Posts
Wow, thanks for the info. For comparison what does the PS I/C measure in at? Is it bigger or smaller then the one I am looking at? BTW the one I am eyeing is out of a Freightliner M2 buisness class truck with a C7 Cat in it. It will keep a 275hp Kitty cool whille working it hard ad flowing over 30lbs of boost, so I figured it should handle anything the little Cummins would be throwing at it. Let me know what you think.
Thanks a bunch,
DS79
Thanks a bunch,
DS79
#9
It sounds like it should fit, just not sure if it will be a good upgrade, and if it is any better then a PS cooler. I haven't found one yet, but I am sure with a few calls I can get one for a decent price.
DS79
DS79
#10
Registered User
Join Date: Nov 2007
Location: Maine
Posts: 1,816
Likes: 0
Received 0 Likes
on
0 Posts
#13
The inlet and outlet do point STRAIGHT back and in the original application they kind of "hug" the radiator. As for a trans cooler, I don't need one in my truck, so no worries for this guy!
DS79
DS79
#14
Registered User
Join Date: Nov 2007
Location: Maine
Posts: 1,816
Likes: 0
Received 0 Likes
on
0 Posts
Your limiting factor may be the radiator again then. I assume the measurement between the inlet and outlet is 30" or so? Your minumum without cutting into some bends on the inside of the rad support bulkhead was 31 something inches. You should be able to run a tape across your radiator and see if it will work.
