As Oliver said 2 Low. But the really cool part is if done right. 2 low front or rear. Also high front or rear. Meaning if one end starts to slide under power and the other is on solid ground you can kill the power.(Kinda hard to explain but if you have been there you know)
And a bonus is easier shifting because you are shifting only one side at a time.
A lot of people use that boot but I will be making my own( I have an industrial sewing machine too) because I need the shifter boot as well. I also found some ***** that all match.
This is the basic idea. pretty simple really.
http://jb-custom-fabrication.myshopify.com/
And a bonus is easier shifting because you are shifting only one side at a time.
A lot of people use that boot but I will be making my own( I have an industrial sewing machine too) because I need the shifter boot as well. I also found some ***** that all match.
This is the basic idea. pretty simple really.
http://jb-custom-fabrication.myshopify.com/
#287
Registered User
Thread Starter
There are two rods that go between the shift rails that need to be removed to take full advantage of the twin stick set up. There is an article floating around the net on how to do it without disassembling the case
The rods are only necessary for the single stick to work.
Hope this helps.

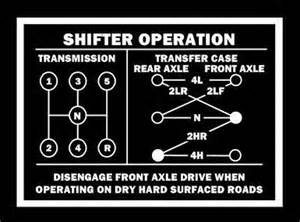

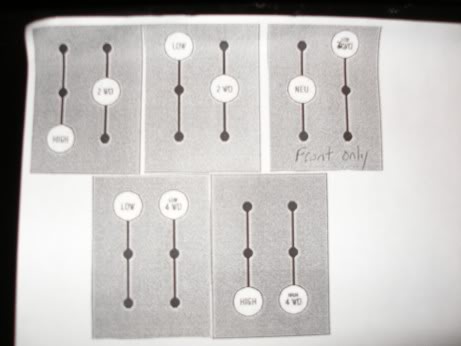

some pattern pics. sadly the best one is hard to see.
#288
Registered User
Thanks for the reminder Mark....I had forget about the interlock pins inside the transfer case. Not sure how you would get those out without pulling apart the TC. They were a pain to get out, and in when I rebuilt my TC.
I will probably mock everything up so that when I pull my TC to re-seal it again!! Yup leaks like a sieve, since I decided to not use any silicone on the gasket surfaces during rebuild and assembly.... Once it's mostly apart for the re-seal I will address the shift rod interlock pins.
I will probably mock everything up so that when I pull my TC to re-seal it again!! Yup leaks like a sieve, since I decided to not use any silicone on the gasket surfaces during rebuild and assembly.... Once it's mostly apart for the re-seal I will address the shift rod interlock pins.
#290
Registered User
Thread Starter
#291
Registered User
Thread Starter
Thanks for the reminder Mark....I had forget about the interlock pins inside the transfer case. Not sure how you would get those out without pulling apart the TC. They were a pain to get out, and in when I rebuilt my TC.
I will probably mock everything up so that when I pull my TC to re-seal it again!! Yup leaks like a sieve, since I decided to not use any silicone on the gasket surfaces during rebuild and assembly.... Once it's mostly apart for the re-seal I will address the shift rod interlock pins.
I will probably mock everything up so that when I pull my TC to re-seal it again!! Yup leaks like a sieve, since I decided to not use any silicone on the gasket surfaces during rebuild and assembly.... Once it's mostly apart for the re-seal I will address the shift rod interlock pins.
#293
Registered User
Thanks for the reminder Mark....I had forget about the interlock pins inside the transfer case. Not sure how you would get those out without pulling apart the TC. They were a pain to get out, and in when I rebuilt my TC.
I will probably mock everything up so that when I pull my TC to re-seal it again!! Yup leaks like a sieve, since I decided to not use any silicone on the gasket surfaces during rebuild and assembly.... Once it's mostly apart for the re-seal I will address the shift rod interlock pins.
I will probably mock everything up so that when I pull my TC to re-seal it again!! Yup leaks like a sieve, since I decided to not use any silicone on the gasket surfaces during rebuild and assembly.... Once it's mostly apart for the re-seal I will address the shift rod interlock pins.
#294
Registered User
Thread Starter
#295
Registered User
Make sure you just use the paper gaskets. The paper aids in the alignment of the transfer case. Don't put anything on the paper.. as if a leak develops the paper will expand and seal it (that's why the paper is always over sized when you buy it). I put never seize on my paper gaskets and ruined every single one. You can buy the kits from northwestfab or quad 4x4.
So I'm going back to the tried and true...thin smear of RTV on each matting surface...with the paper gasket between. I have never had an issue when assembling things this way.
#296
Registered User
Thread Starter
That is exactly what I had read...and did. My transfer case leaks like a sieve now from every one of those paper gasket mounting points.
So I'm going back to the tried and true...thin smear of RTV on each matting surface...with the paper gasket between. I have never had an issue when assembling things this way.
So I'm going back to the tried and true...thin smear of RTV on each matting surface...with the paper gasket between. I have never had an issue when assembling things this way.
#297
Registered User
Thread Starter
I went and did it today I cut out the hole for my transfer case shifters.
For the straight cuts I used a cut off wheel in a die grinder. For the radius cuts I used a jig saw. It worked out pretty good as I clamped the tunnel to the bench really tight and ran the jig saw as fast as it would go. It helped that I left some metal for finish sanding and shaping. That I cleaned up with a 2" Drum sander on the die grinder.

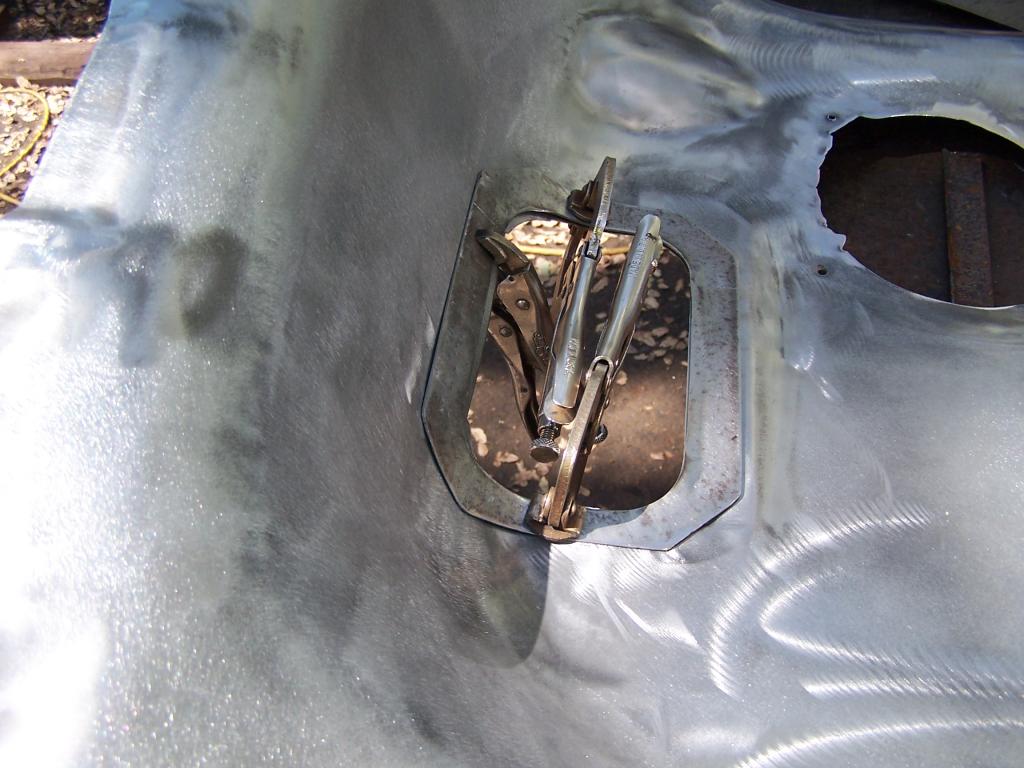

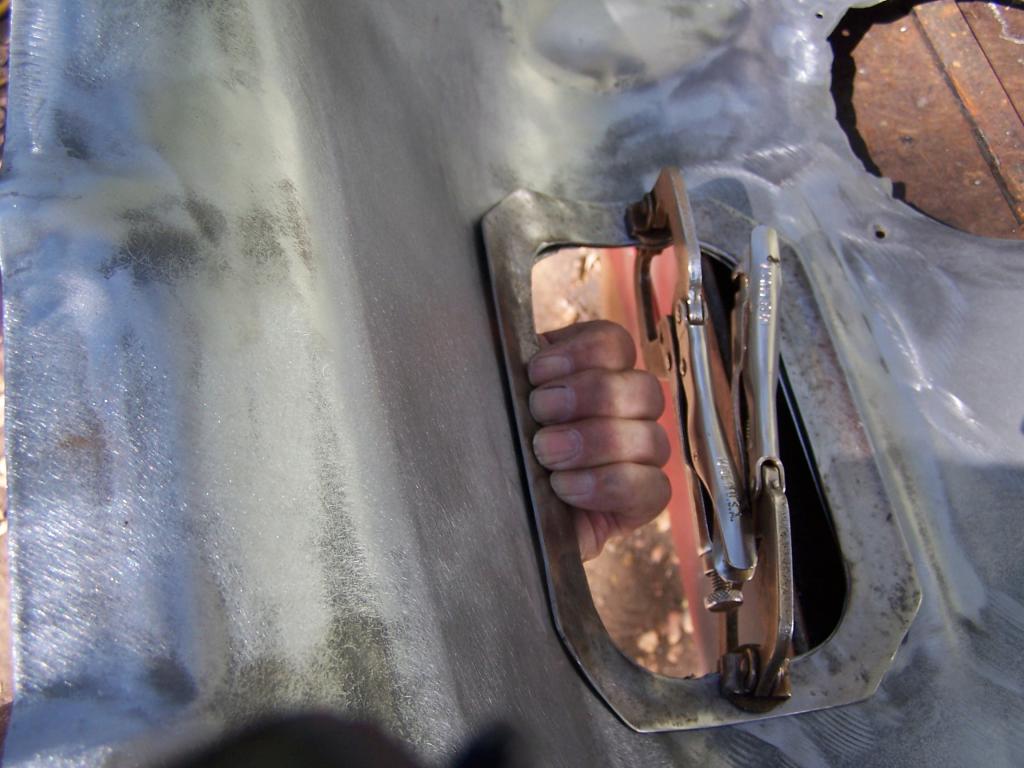

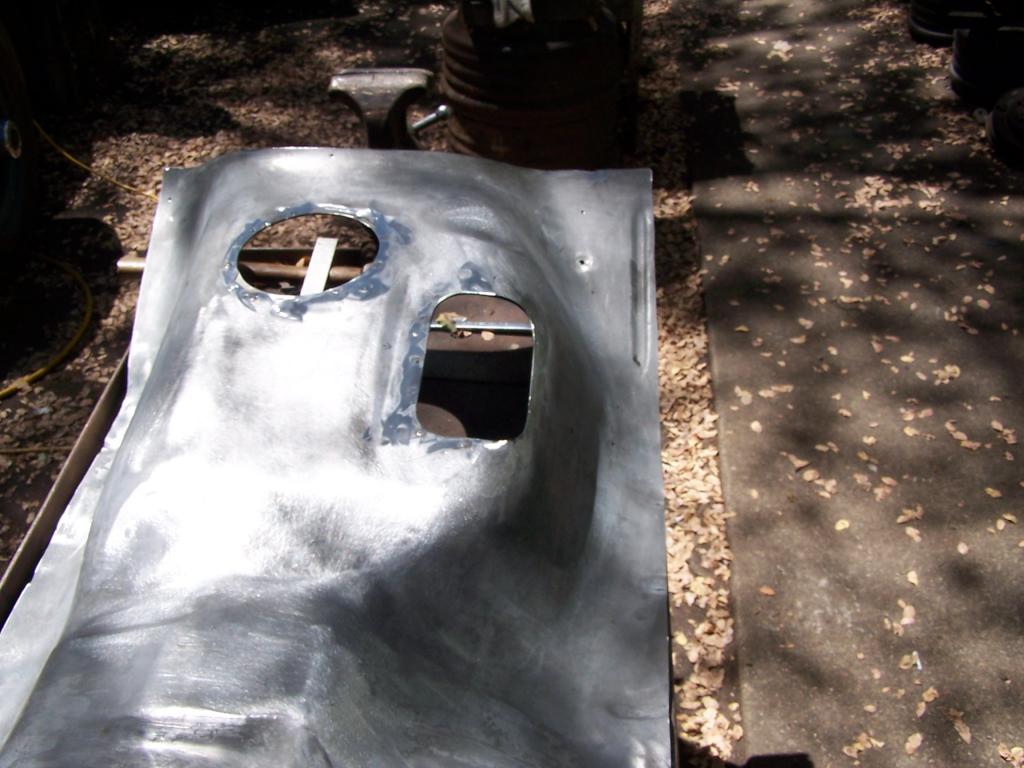

First picture is one of the methods I used to shape the transfer case hole stiffener the rest are test fitting and the finished product (it least for today)
WoW talk about crappy pictures
For the straight cuts I used a cut off wheel in a die grinder. For the radius cuts I used a jig saw. It worked out pretty good as I clamped the tunnel to the bench really tight and ran the jig saw as fast as it would go. It helped that I left some metal for finish sanding and shaping. That I cleaned up with a 2" Drum sander on the die grinder.
First picture is one of the methods I used to shape the transfer case hole stiffener the rest are test fitting and the finished product (it least for today)
WoW talk about crappy pictures
#298
Registered User
Thread Starter
Today I decided to see how much damage I could do to my floor.
I thought about this for some time. I could imagine myself fighting the two panels while trying to fit and trim them. Sort of like an old Chevy Chase movie.
The answer I came up with was to cot the floor 1/2" short on each side and put a flange in it. Seems like a good idea. The new tunnel will sit on the flange and the top will be reasonably close to the top of the floor. The only problem my flange tool will only work on fairly flat panels. ok so I flanged the parts that would work and will but weld the places that won't.
so here is what I came up with.

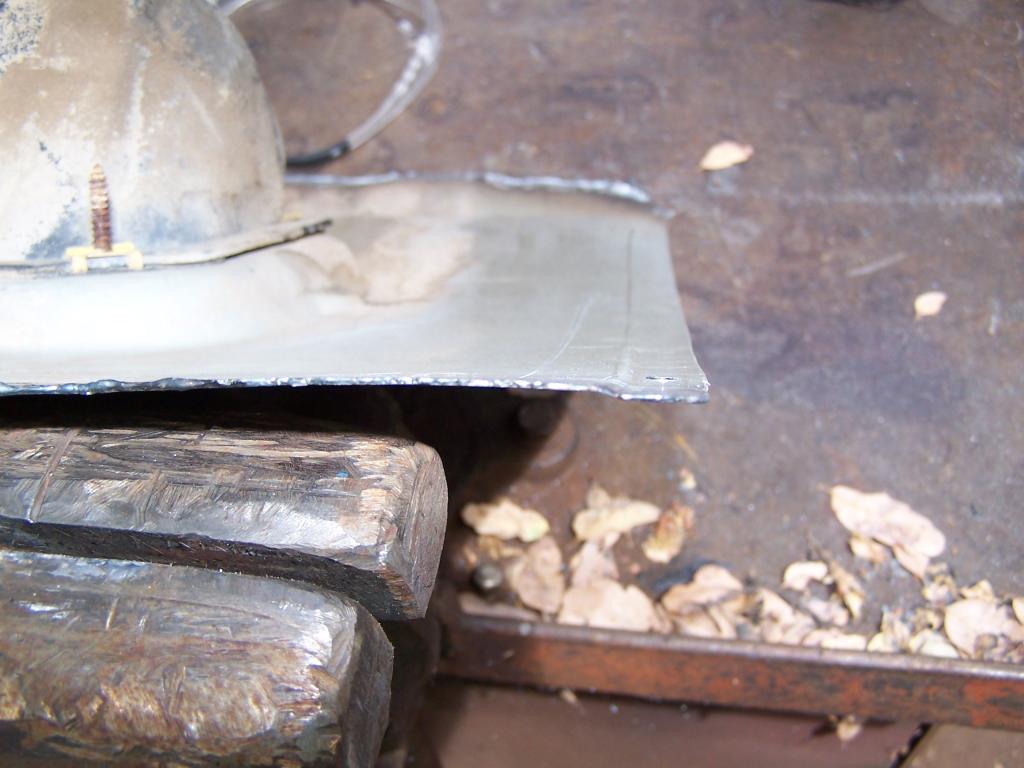

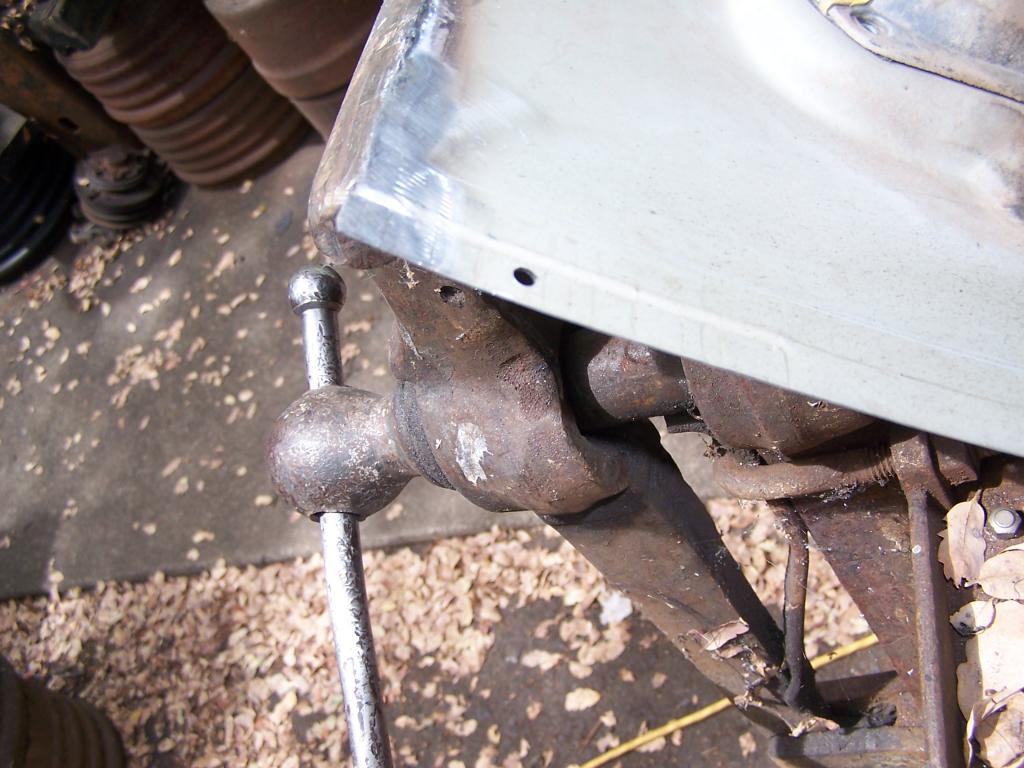

The first and second pictures are an attempt to show the flange that the tool makes.

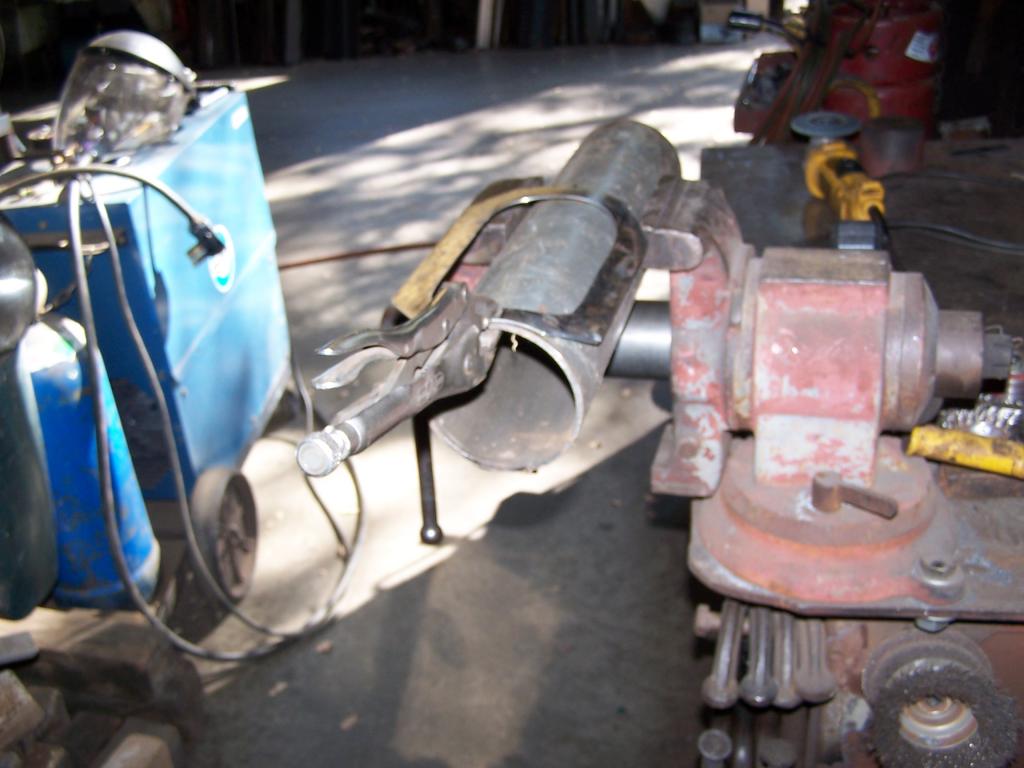

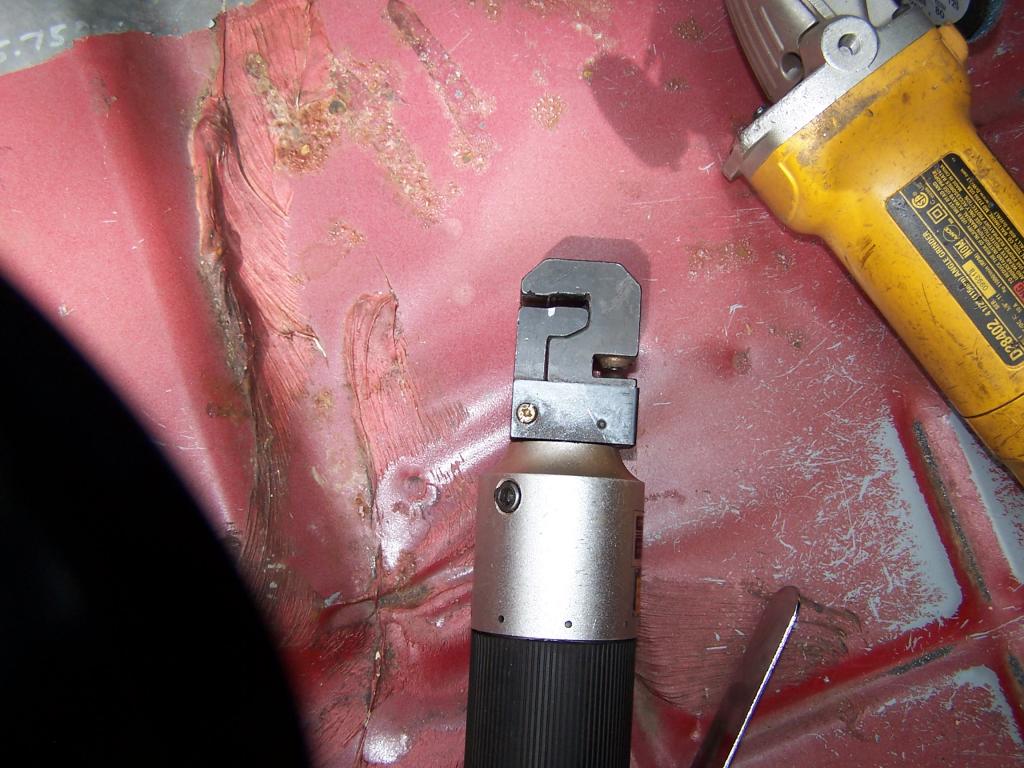

The third picture is the tool, one side presses the flange and the other punches a hole to plug weld the "patch panel" to the flange.

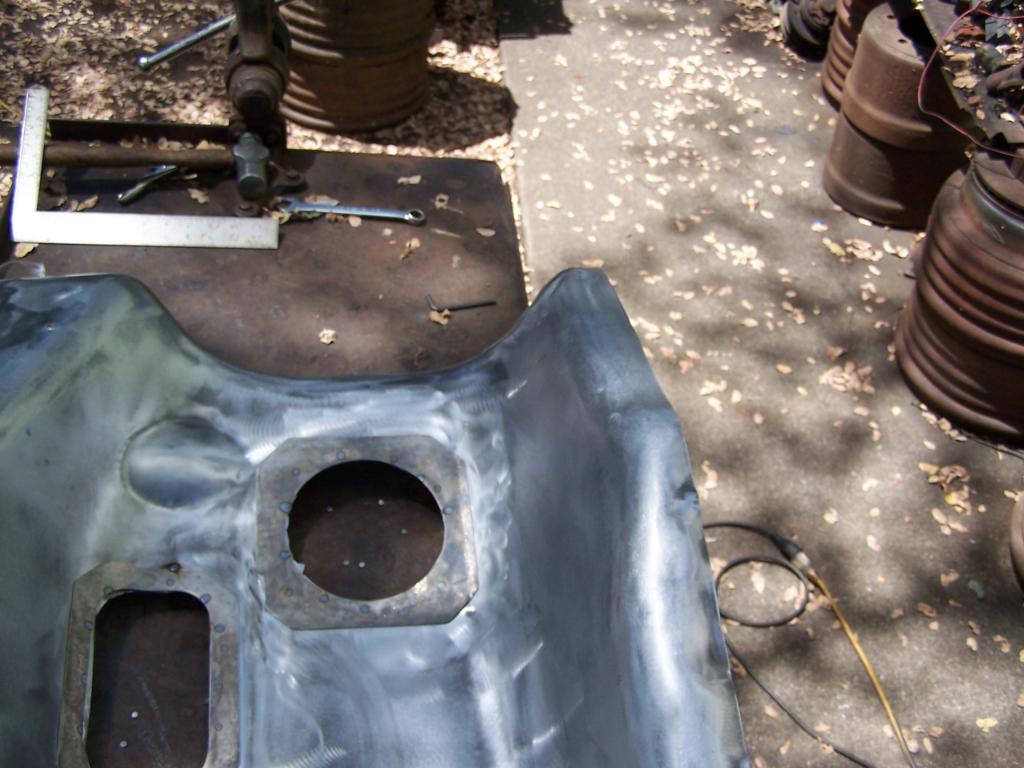

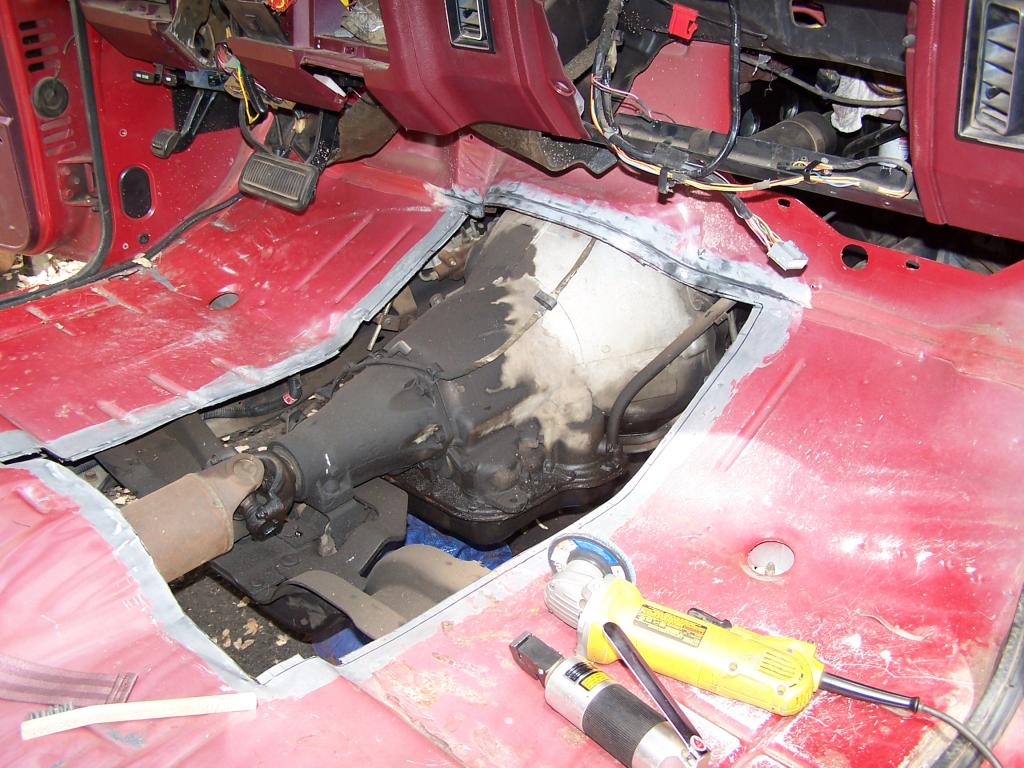

The last picture is my new window with the sides flanged. the flange extends from the edge to the black line.
I thought about this for some time. I could imagine myself fighting the two panels while trying to fit and trim them. Sort of like an old Chevy Chase movie.
The answer I came up with was to cot the floor 1/2" short on each side and put a flange in it. Seems like a good idea. The new tunnel will sit on the flange and the top will be reasonably close to the top of the floor. The only problem my flange tool will only work on fairly flat panels. ok so I flanged the parts that would work and will but weld the places that won't.
so here is what I came up with.
The first and second pictures are an attempt to show the flange that the tool makes.
The third picture is the tool, one side presses the flange and the other punches a hole to plug weld the "patch panel" to the flange.
The last picture is my new window with the sides flanged. the flange extends from the edge to the black line.
#299
Registered User
Join Date: Dec 2010
Location: Land of the Toxic Avenger
Posts: 6,789
Received 1,647 Likes
on
1,120 Posts
Very nice engineering you got there charlie brown. By putting that flange on there, you're adding strength, or rigidity, correct ? Are you welding that sucker in, or riveting or epoxying ?
#300
Registered User
Thread Starter
That is one of the benefits. I'm going to do some plug welds and weld the outside edges. it should be stronger than the stock floor around it
